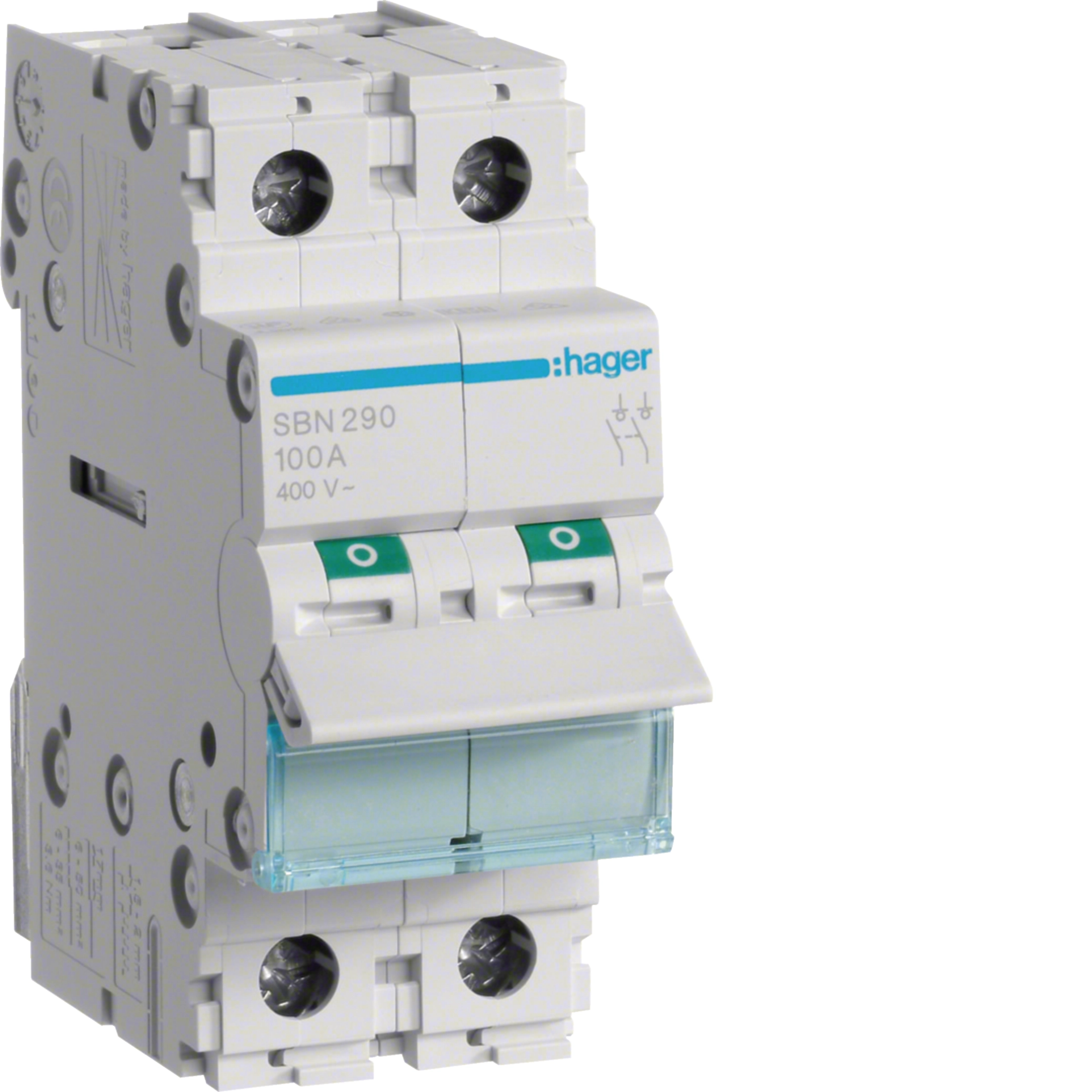

100A 2p Breaker Changeover Switch
Original price was: ₦16,000.00.₦13,000.00Current price is: ₦13,000.00.
Technical characteristics
Architecture
-
Number of poles2
-
Control/operation elementBreak switch
-
Type of pole2P
Electric current
-
Rated current IN100 A
-
Rated conditional short-circuit current Icc with gl-gG fuses1.20 kA
-
Acceptable current rating AC21 category A100 A
-
Acceptable current rating AC21 category B100 A
-
Acceptable current rating AC22 category A100 A
-
Acceptable current rating AC22 category B100 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-31.69 kA
-
Rated short-time withstand current Icw 1s IEC 609471.20 kA
Installation, mounting
-
Nominal tightening torque3.60 – 3.60 Nm
-
Type of bottom connection for modular devicesbiconnect
Voltage
-
Rated operational voltage Ue400 – 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp6,000 V
