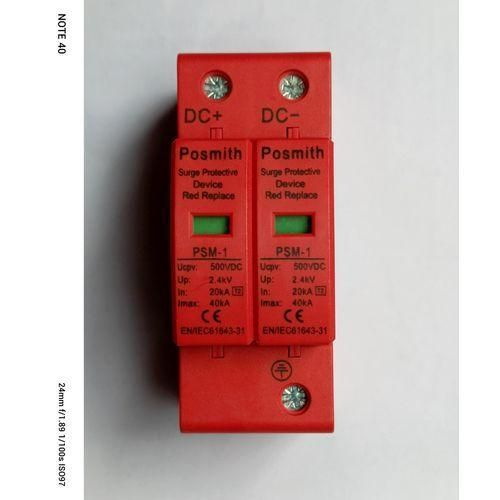

DC Surge Protection Device 40kA DC Solar PV SPD
Original price was: ₦15,000.00.₦12,000.00Current price is: ₦12,000.00.
This protects your solar installation from thunder spikes and any DC surge this ensuring safety of your solar installation
This protects your solar installation from thunder spikes and any DC surge this ensuring safety of your solar installation
Specification
Item
DC Surge Protector Device
Pole
2P
Classified test
â…¡
Un (V DC)
1000V DC
In(8/20)us (kA)
20
Imax(8/20)us (kA)
40
Up (kV)
3.2
Hard wiring capacity(mm²)
4~25
Flexible wiring capacity(mm²)
4~16
Stripping length(mm)
10
Terminal screwa
MS
Protection class
IP20
Installation environment
No obvious shock and vibration
Altitude (m)
≤ 2000
Working Temperature
-30~+70
Relative humidity
30%~90%
How to Install
Installed with H35-7.5/DIN35 steel mounting rail
